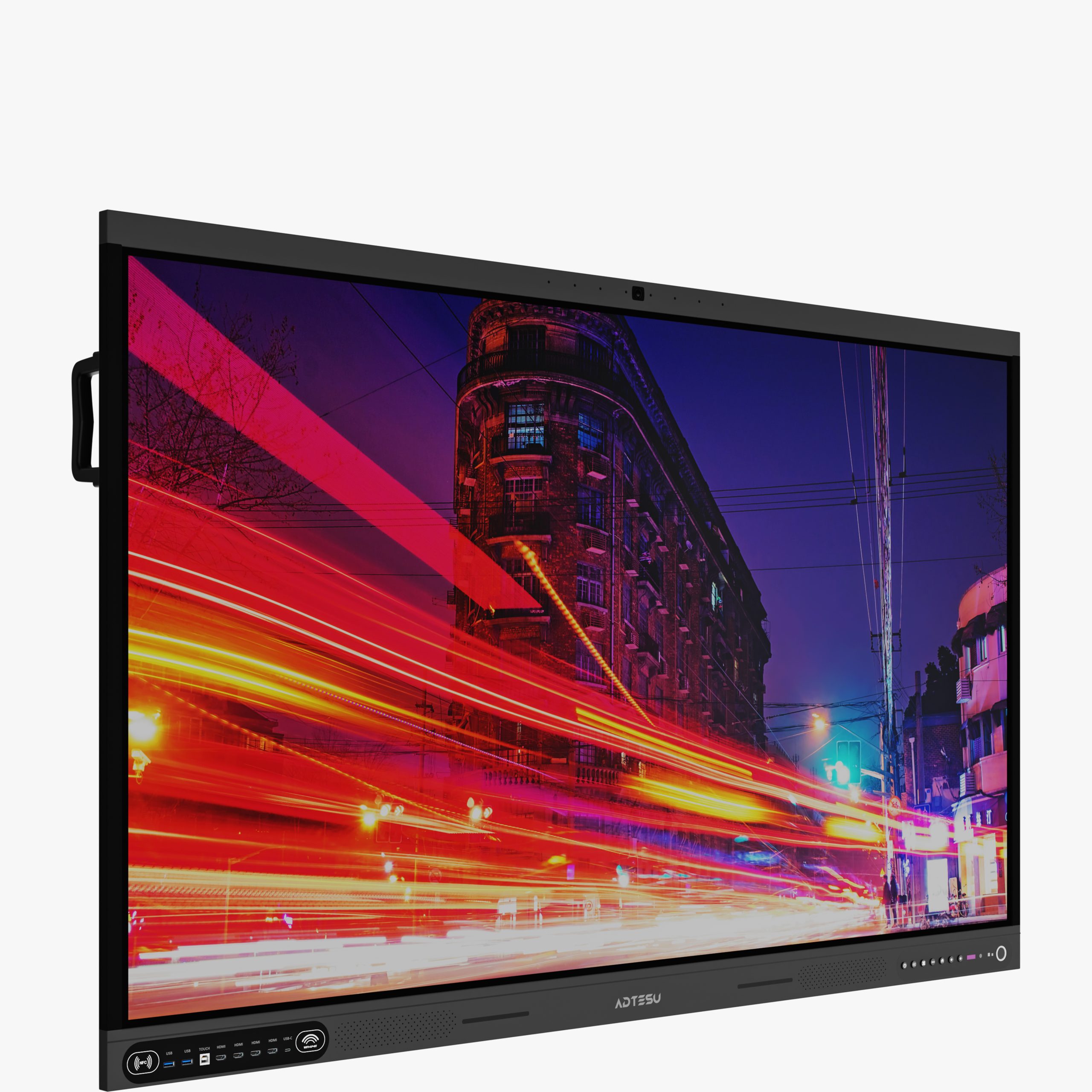

Smart Interactive Display ADS86PRO

Smart Panel Interactive Display PRO Series is an incredibly smart interactive display that brings people together to learn and work. It makes collaboration and communication more effortless in the workplace, classroom, and almost anywhere with the highest touch interaction and wider connectivity.

Designed with cutting-edge technology, the PRO Series offers ultra-responsive touch capabilities, allowing multiple users to interact simultaneously with precision and ease. Its 4K Ultra HD display ensures crystal-clear visuals, making presentations, videos, and interactive lessons more engaging and impactful. The display’s advanced connectivity options, including multiple HDMI and USB ports, enable seamless integration with various devices, enhancing the overall user experience.

Moreover, the Smart Panel Interactive Display PRO Series is equipped with intuitive software that supports a wide range of applications, from digital whiteboarding to video conferencing. Its user-friendly interface and robust security features make it an ideal solution for modern educational environments and dynamic business settings. Whether you’re brainstorming in a corporate meeting or teaching a complex subject in a classroom, this interactive display transforms the way you communicate and collaborate.

  • Size: 86 inch
  • Display scale: 16:9
  • Backlight type: D-LED edge type
  • Maximum resolution: 3840 x 2160 (pixels)
  • Refreshing frequency: 60Hz
  • Brightness: 400 cd/m²
  • Contrast ratio: Typ: 1200:1
  • Pixel Pitch: 0.4935 (Hor.) x 0.4935 (Ver.)
  • Viewing area: 1895.04 (Hor.) x 1065.96 (Ver.)
  • Viewing angle: Hor:178°; Ver:178°
  • Response time: Typ.:8ms
  • Display colors: 1.07B (8bit+FRC)
  • Color gamut (NTSC): 72%
  • RAM: 8GB
  • ROM: 64GB
  • Power requirements: AC 100 V ~ 240 V, 50/60 Hz
  • Maximum power consumption without OPS: 460W (TBD)
  • 20 Points of Touch and Writing
  • Android 11 OS
  • Windows ink compatible

Download

  • Size: 86 inch
  • Display scale: 16:9
  • Backlight type: D-LED edge type
  • Maximum resolution: 3840 x 2160 (pixels)
  • Refreshing frequency: 60Hz
  • Brightness: 500 cd/m²
  • Contrast ratio: Typ: 1200:1
  • Pixel Pitch: 0.4935 (Hor.) x 0.4935 (Ver.)
  • Viewing area: 1895.04 (Hor.) x 1065.96 (Ver.)
  • Viewing angle: Hor:178°; Ver:178°
  • Response time: Typ.:8ms
  • Display colors: 1.07B (8bit+FRC)
  • Color gamut (NTSC): 72%
  • RAM: 8GB
  • ROM: 64GB
  • Power requirements: AC 100 V ~ 240 V, 50/60 Hz
  • Maximum power consumption without OPS: 460W (TBD)
  • 40 Points of Touch and Writing
  • Android 13 OS
  • Windows ink compatible
